More than 12,000 items for shutting off, controlling, connecting and automating –
in the nominal sizes, pressure ratings and materials that plant engineering needs every day.
Our supply programme has two parts. The brand programme covers the valves of the manufacturers we have supplied, modified and automated for years. The catalogue programme covers the items whose requirement is described technically, but for which no particular manufacturer has to be specified.
Arranged by field of application rather than by valve type. All details bilingual, German and English.

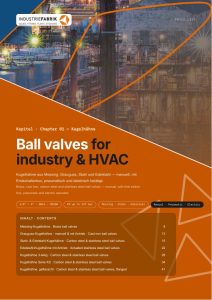

Brass, grey cast iron, steel and stainless steel; one- to three-piece, XS series and flanged; manual, with limit switch box, pneumatically or electrically actuated. 1/8″–4″, DN 15–DN 200, up to PS 137 bar.
Concentric, double and triple offset, in ductile iron and stainless steel; wafer and lug, with lever, gearbox or actuator. DN 32–DN 1000, PN 6–PN 16, ANSI 150, JIS 10K; seat in EPDM, NBR or PTFE.
Knife gate and wedge gate valves, pressure reducing valves, float, diaphragm, needle and globe valves, piston valves, forged and cast steel valves, check valves, strainers and expansion joints. DN 8–DN 1000, PN 10–PN 40, ANSI 150/300.
Stainless steel ball valves, valves and fittings to SMS, DIN and clamp standards, plus orbital connections and instrumentation. Materials 1.4409, 1.4435 and CF3M; CE 1935/2004 and FDA, SIL 2 to ISO 15848-1.
Ball valves, butterfly valves, check, diaphragm and solenoid valves in PVC-U, PP and PVDF, chemically resistant and free from corrosion. d16–d315, solvent socket, thread or flange; with chemical resistance table.
Pneumatic and electric quarter-turn actuators, angle seat and solenoid valves, limit switch boxes, positioners and accessories. On/off, modulating and fail-safe; ATEX and NAMUR, IP65 to IP68.
Pressure reducing valves, safety and overflow valves, water hammer arresters, equipment for steam, gas and compressed air, together with sight glasses, level indicators, flow meters, thermometers and pressure gauges.
Malleable iron fittings to EN 10242, press fitting systems in galvanised and stainless steel, steel and stainless steel fittings, pipe couplings, flanges, quick couplings and water network fittings.
Brass ball valves in CW617N, lead-free DZR design, float valves, gate valves, stop, draw-off and check valves, strainers and PVC valves. Drinking water approvals ACS and 4MS.
Basket type, simplex, duplex and pot type strainers in welded design, together with T-type strainers, hat screens, replacement sieves and orifice plates. DN 50–DN 1000, PN 6–PN 40, steel and stainless steel – from our own production.
The full catalogue with more than 12,000 items, dimensions, materials and prices. Useful if you want to search inside the document or keep it on file.
Open complete catalogue (PDF, approx. 196 MB)
Because of its size it is meant for downloading on a computer – the individual chapters above are considerably smaller.
Both routes lead to the same result. They differ in the requirement, not in the care taken.
The brand programme applies when
The catalogue programme fits when
In practice the two run side by side: the specified items from the brand programme, the rest from the catalogue. We supply both from one source and with the same contact person.
Instead of assurances, the evidence supplied with the catalogue items:
Some of the items come from the same production as well-known branded goods, only without their marking. Which design will carry your application is something we settle before you order – sizing is part of our work, whichever programme the valve comes from.
The prices stated in the catalogues are net in euros, ex works, per piece. The validity stated in the respective catalogue applies. Large nominal sizes and special designs are not available from stock throughout and are quoted on request.
For project quantities, recurring demand and framework agreements, please talk to us – we price those separately.
