Our ball valves are the perfect solution for industrial processes, district heating, chemicals, food technology and energy systems. They impress with their simple operation, high tightness and long service life.
Threaded ball valves are compact, easy to install and ideal for applications with limited space. They provide a reliable seal and are available in brass or stainless steel.

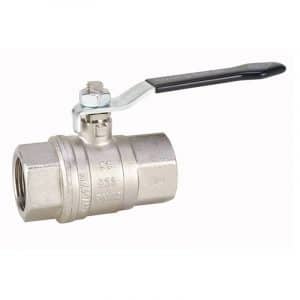

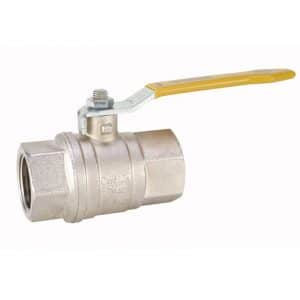

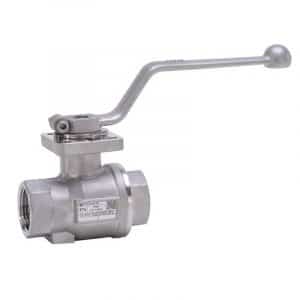

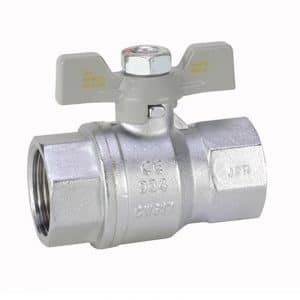

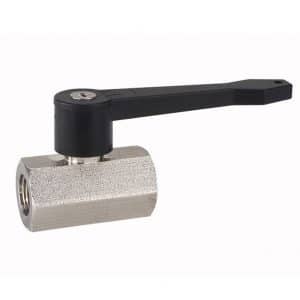

| Feature | Type 93400 & 93500 | Type 960 | Type 87E | Type 933 | Type 984 |
| Nominal pressure | PN 40 | PN 63 | PN 40 | PN 63 | PN 63 |
| Nominal size | DN 8 – DN 50 | DN 8 – DN 50 | DN 8 – DN 50 | DN 8 – DN 50 | DN 8 – DN 50 |
| Temperature | -20 °C to +150 °C | -20 °C to +200 °C | -20 °C to +150 °C | -20 °C to +200 °C | -20 °C to +200 °C |
| Material | Brass | Stainless steel | Brass | Stainless steel | Stainless steel |
| Area of application | Heating, sanitary, industry | Chemistry, food, water | Heating and sanitary technology | Industry, water, oil | Chemical processes |
| Special feature | Compact, PTFE gasket | High corrosion resistance | Maintenance-free, compact design | Can be automated, ISO 5211 mounting flange | FDA-compliant, high temperature resistance |
| Feature | Type 300F | Type 835 | VL-421T & VL-422T | Type 964 |
| Nominal pressure | PN 63 | PN 40 | PN 63 | PN 63 |
| Nominal size | DN 8 – DN 50 | DN 8 – DN 50 | DN 8 – DN 50 | DN 8 – DN 50 |
| Temperature | -20 °C to +150 °C | -20 °C to +150 °C | -20 °C to +200 °C | -20 °C to +200 °C |
| material | Stainless steel | brass | Stainless steel | Stainless steel |
| Field of application | Energy systems | Sanitary, heating systems | Automated processes | Chemistry, Pharmaceuticals |
| Special feature | Fire-safe, Ex-suitable | Compact design, PTFE gasket | ISO 5211 mounting flange, Ex-suitable | Low dead space, FDA-compliant |
Flanged ball valves are the first choice for large pipe dimensions and district heating applications. They offer a robust construction, easy maintenance and are designed for high pressure and temperature ranges.
| Feature | VLA-816 & VLA-840 LV KV | VLA-851 Ecoline | VL-160F- M | VLA-140F | KSL 75/77 & KSN 75/77 |
| Nominal pressure | PN 16 / PN 40 | PN 16 / PN 40 | PN 16 / PN 40 | PN 16 / PN 40 | PN16 |
| Nominal size | DN 15 – DN 100 | DN 15 – DN 100 | DN 15 – DN 100 | DN 15 – DN 200 | DN 25 – DN 250 |
| Temperature | -10 °C to +200 °C | -10 °C to +200 °C | -10 °C to +200 °C | -10 °C to +200 °C | -20 °C to +180 °C |
| Material | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Spheroidal graphite cast iron |
| Area of application | Industry, district heating | Chemistry, Energy | Industry, energy systems | Ex-areas, chemistry | Gas and liquid applications |
| Special feature | Fire-safe, ISO 5211, TA-Luft-compliant | Compact face-to-face length, full bore | Compact, Anti-Blowout selector shaft | Can be automated, ISO 5211 | Fire-Safe, DVGW- approval |
| Property | 71 MS & 71 ME | Type 169 E / S | 100, 101, 103 & 104 | ||
| Nominal pressure | PN 16 / PN 40 | PN 16 / PN 40 | PN 10 / PN 40 | ||
| Nominal size | DN 15 – DN 200 | DN 15 – DN 200 | DN 10 – DN 500 | ||
| Temperature | -20 °C to +180 °C | -20 °C to +180 °C | -20 °C to +200 °C | ||
| Material | Cast steel / stainless steel | Steel (S) / stainless steel (E) | steel | ||
| Field of application | Energy, Industry | Chemicals, energy | District heating, power plants | ||
| Special feature | Auto-matizable Fire-Safe, ISO 5211, modular connections | Auto-matizable, Fire-Safe, TA-Luft-compliant | Auto-matizable, large nominal sizes, manual gearbox optional |
Modular ball valves offer maximum flexibility. Thanks to the modular system, different connection types can be combined – whether threaded, flanged, clamped or butt weld ends.
| Feature | VL-501T & VL-521T | VL-521F & VL-540F | VL-501B & VL-521B | 1251 & 1351 | RA57 & RA66 |
| Nominal pressure | PN 63 | PN 40 | PN 63 | PN 125 | PN 40 |
| Nominal size | DN 8 – DN 100 | DN 8 – DN 100 | DN 8 – DN 100 | DN 8 – DN 100 | DN 15 – DN 200 |
| Temperature | -20 °C to +200 °C | -20 °C to +200 °C | -20 °C to +200 °C | -20 °C to +200 °C | -20 °C to +200 °C |
| Material | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel |
| Area of application | Chemistry, Food | Energy, Industry | Chemistry, Pharmaceuticals | Food, pharmaceuticals | Aggressive media |
| Special feature | Can be automated ISO 5211, modular connections, FDA-compliant | Can be automated, fire-safe, Ex-suitable | Can be automated Low dead space, FDA-compliant | Can be automated, Hygienic design, suitable for CIP/SIP | Can be automated, suitable for hazardous areas |
3-way ball valves, in 1-part, 2-part or even 3-part designs, enable complex flow controls such as mixing or distribution. They are available in L or T bores and some have a modular design.
| Feature | 133 & 134 | 135 & 136 | 137 & 138 | 630E | VLA-321 | VL-Z316F & VL-Z340F | 640E & 640S |
| Nominal pressure | PN 16 / PN 40 | PN 16 / PN 25 | PN 10 / PN 30 | PN 63 | PN 63 | PN 16 / PN 40 | PN 16 / PN 40 |
| Nominal size | DN 6 – DN 50 | DN 6 – DN 50 | DN 6 – DN 50 | DN 6 – DN 50 | DN 8 – DN 50 | DN 15 – DN 100 | DN 15 – DN 100 |
| Temperature | -20 °C to +150 °C | -25 °C to +120 °C | -25 °C to +150 °C | -25 °C to +180 °C | -10 °C to +200 °C | -10 °C to +200 °C | -20 °C to +180 °C |
| Material | Brass | Brass | Brass | Stainless steel | Stainless steel | Stainless steel | Stainless steel / cast steel |
| Area of application | Heating and sanitary technology | Industry, water, oil | Heating and cooling circuits | Chemistry, Energy | Hazardous areas, industry | Food, pharmaceuticals | Energy, district heating |
| Special feature | T-/L-bore, compact design | Auto-matizable Full bore, ISO 5211 mounting flange | Auto-matizable, | Auto-matizable Lockable, ISO 5211, Fire-Safe | Auto-matizable T-/L-bore, anti-blowout switching shaft | Low dead space, flanged connection, TA-Luft-compliant | Fire-safe, ISO 5211, ANSI flange optional |
Maximize the functionality of your ball valves with pneumatic or electric actuators. Thanks to ISO 5211 mounting flanges, spindle extensions and mounting bridges, our valves are easy to automate – for precise control in industrial plants.
Optimize your processes with heatable valves: heating jackets, leakage jackets or double jacket versions ensure temperature-stable media flow, prevent solidification and enable safe and efficient production processes. Ideal for ball valves, valves, filters and strainers in the chemical, food and process industries.
For all our ball valves – whether with or without heating jacket, whether in manual mode or automated by actuators – we offer the right insulation, individually manufactured.
Insulation can be implemented with the high-quality IFS-Plast25 insulating jackets and insulating pads, for example. This solution ensures optimum energy efficiency and safety in your process.
Your advantages at a glance:
We offer professional modifications for your valves:
All work is carried out in accordance with the standard, with functional testing and optional certification (e.g. APZ 10204-3.1 B).
Benefit from customized solutions, fast implementation and the highest quality –
also for the ball valves you provide.
Increase the user-friendliness of your ball valves with stem or stem extensions. This modification is ideal for isolated valves or valves that are difficult to access and enables convenient manual operation or the connection of pneumatic and electric actuators.
Technical details:
Threaded, flanged, modular and 3-way versions
Insulation solutions for energy efficiency
such as PED, TA-Luft and Fire-Safe for maximum safety
Fast availability, easy maintenance
Automation with electric, pneumatic or hydraulic actuators
Yes, many models have ISO 5211 mounting flanges for easy automation.
Yes, we offer heating jackets, explosion-proof variants and individual connections.
Water, oil, steam, glycol mixtures, aggressive media – depending on the material selected.
From PN10 to PN63, depending on the model.
Yes, many models are designed for temperatures up to +200 °C, optionally with a heating jacket.
