Solenoid valves are essential components for the precise control of liquids and gases in industrial processes. They enable reliable shut-off and automation in applications such as heating technology, mechanical engineering and the process industry. Our selection includes pilot operated and positively operated diaphragm valves in various designs – for maximum flexibility and safety.
| Feature | MV1355 to MV1362 | MV1363 to MV1367 | MV1381 to MV1382 | MV1383 to MV1387 | MV1411 to MV1415 |
| Control system | Pilot-operated, de-energized closed, compact design | Pilot-operated, de-energized closed, large nominal sizes | Pilot-operated, de-energized opening, compact design | Pilot-operated, de-energized open, ATEX-compliant | Positively driven, closed when de-energized, no minimum pressure |
| Nominal pressure | PN 16 | PN 16 | PN 16 | PN 16 | PN 14 |
| Nominal size | G 3/8″ to G 1/2″ | G 3/4″ to G 2″ | G 3/8″ to G 1/2″ | G 3/4″ to G 2″ | G 3/8″ to G 1¼” |
| Kv value (l/min) | 60 to 70 | 140 to 750 | 60 to 70 | 140 to 750 | 20 to 120 |
| Temperature | -10 °C to +140 °C | -10 °C to +140 °C | -10 °C to +90 °C | -10 °C to +140 °C | -10 °C to +90 °C |
| Gasket | NBR / FKM | NBR / FKM / EPDM | NBR (optional FKM) | NBR / FKM / EPDM | NBR + PA |
| Special feature | Pilot-operated, compact | Large nominal sizes | Open without voltage | ATEX-compliant | No minimum pressure |
Pilot-controlled and force-controlled for different applications
for space-saving installation
For use in harsh environments
according to DIN EN ISO 228-1
Quickly available

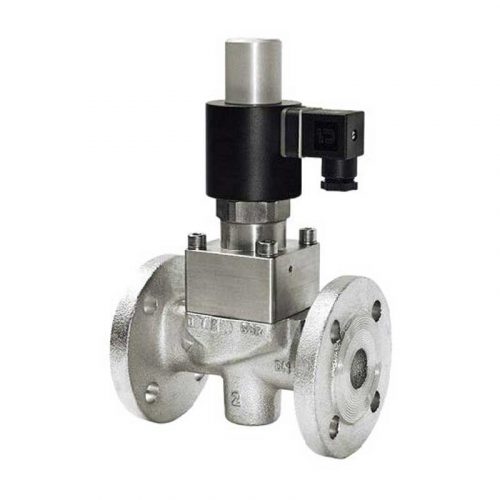

We offer you a comprehensive range of solenoid valves from well-known manufacturers – with flange or socket connection, for direct and alternating current. The valves are available in direct, servo and force-controlled versions and cover nominal sizes from DN15 to DN300. They are suitable for liquid and gaseous media and are manufactured from high-quality materials.
You will find a wide selection of industrial valves and accessories for a wide range of applications in our valve trading area. Our service team is always available to provide you with individual advice and help you select the right solution.
Air, water, inert gases as well as mineral oils, gasoline and gas oil.
Yes, variants with FKM or EPDM gasket up to +140 °C.
Yes, certain models are ATEX-compliant.
Yes, all valves can be installed as required.
Yes, replacement coils, diaphragms and special options are available.
