Robust rack and pinion design, ATEX-compliant, versatile
| Feature | Specification |
| Type | DR (double-acting), SC (single-acting with spring return) |
| Rotation angle | 90°, optionally 120°, 135°, 180° |
| Control medium | Dry/oiled air or inert gases |
| Control pressure | 2.5-8 bar (max. 8 bar, large types 7 bar) |
| Temperature range | Standard: -40 °C to +80 °C, HT: up to +150 °C, LLT: down to -55 °C |
| Standards | ISO 5211, DIN 3337, VDI/VDE 3845 |
| Temperature range | -10 °C to +130 °C |
| Protection class | Corrosion protection for normal environments, variants for aggressive media available |
| Lubrication | Lubricated for life (standard grease GSTD, special grease for HT/LLT) |
| Interface | Namur interface |
| Body | ALODUR, anodized running surfaces, stainless steel on request |
| Piston | machined, anodized |
| Shaft | Electroless nickel-plated ENP |
| Optional | Centering ring |
Thanks to the Namur interface in accordance with VDI/VDE 3845, the pneumatic actuator Edition 2010 offers easy integration of accessories such as solenoid valves and limit switch boxes.
Yes, the actuator Edition 2010 complies with the ATEX directives for use in potentially explosive atmospheres.

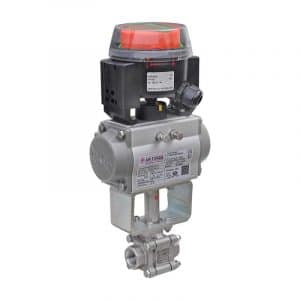

It is ideal for butterfly valves and ball valves and can be mounted directly or via brackets.
Standard: -40 °C to +80 °C, HT version up to +150 °C, LLT version down to -55 °C.
Yes, solenoid valves, limit switch boxes, spindle extensions, bridges and adapters are available.
