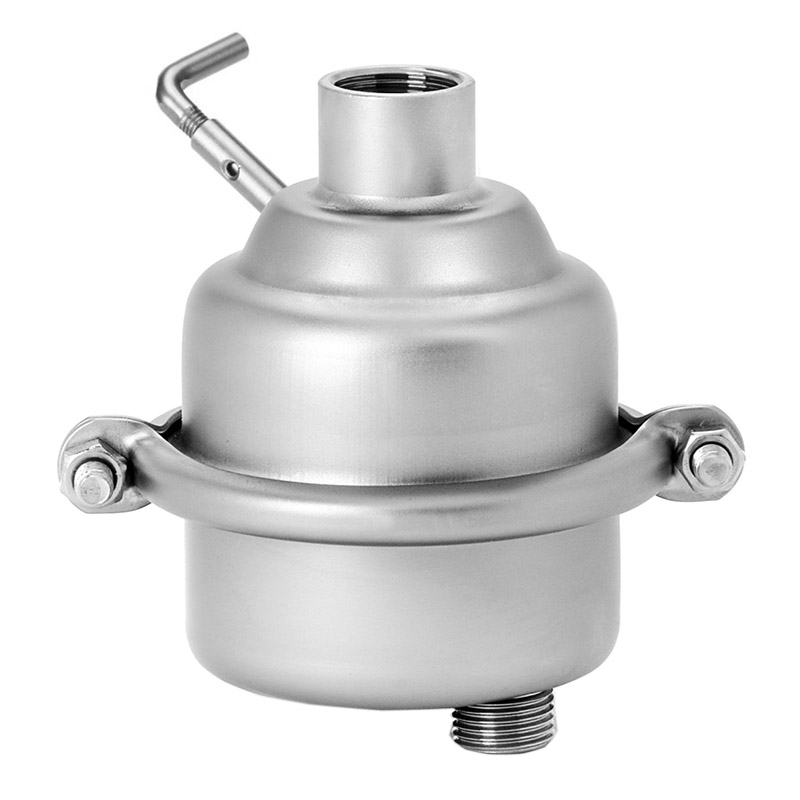

The KA 2K from Mankenberg is a float-controlled steam trap for the reliable drainage of condensate from compressed air and gas lines. It is particularly suitable for aggressive media and applications in the food industry. The compact stainless steel design offers high corrosion resistance and easy maintenance.
| Characteristic | Value |
| Nominal size | G ½” × ½”, G ¾” × ½”, G 1″ × ¾”, DN 25 × ¾” |
| Nominal pressure | PN 16 |
| Temperature range | up to 190 °C |
| Material | Body: stainless steel, Float: stainless steel |
| Working pressure | 0 – 13 bar |
| Flow rate | 2 – 1570 l/h |
| Valve seal | FFKM (other materials optional) |
| weight | approx. 0.85 kg |
Steam traps are much more than just drainage fittings – they are indispensable functional elements in modern steam, energy and process systems. In SKID systems, they are responsible for the safe, efficient and load-dependent drainage of condensate, thus ensuring trouble-free operation, constant energy efficiency and the protection of sensitive components.
Especially in compact, modular system packages, steam traps must work reliably, handle different pressures and temperatures and be flexibly integrated into any installation situation.
Our steam traps – including thermal versions with diaphragm regulators such as the MK45 from GESTRA – are used as integral system components in SKID and process plant construction and ensure maximum operational reliability even under demanding conditions.
0-2 bar, 0-6 bar, 0-12 bar, 0-13 bar (only metallic sealing for G 1″ × ¾” and DN 25 × ¾”).
Stainless steel body and float, FFKM valve seal, FEPM body seal.
Quick-release fastener with profile clamp, no special tools required.
Yes, special versions and sealing materials are available on request.
