For higher torques, robust design, manual override (VS)

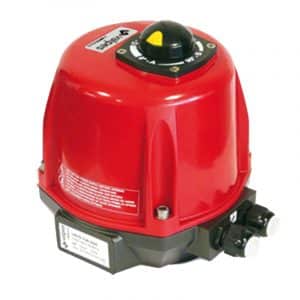

VR series: For lower torques (up to 75 Nm), compact design, ideal for butterfly valves and medium-sized ball valves.

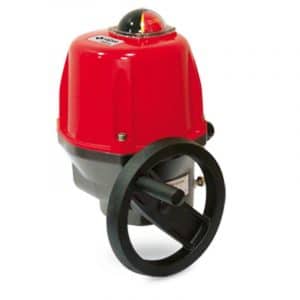

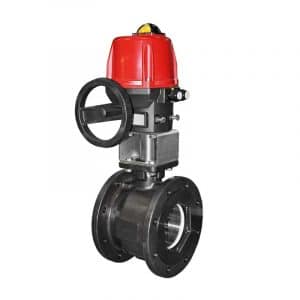

VS series: For higher torques (up to 300 Nm), additional manual override for safety, suitable for large valves and demanding applications.
| Feature | VR series | VS series |
| Torque | 25 Nm, 45 Nm, 75 Nm | 100 Nm, 150 Nm, 300 Nm |
| Supply voltage | 100-240 V AC | 100-240 V AC |
| ISO flange | F05/F07, DS17 (star 17) | F07/F10, DS22 (star 22) |
| Swivel angle | 0°-90° (adjustable) | 0°-90° (adjustable) |
| Protection class | IP65 | IP65 |
| Options | Heating resistors, torque switch, error feedback | Heating resistors, torque switch, manual override |
| Standards | DIN EN 15714-2, ISO 5211 | DIN EN 15714-2, ISO 5211 |
VR: 25-75 Nm, VS: 100-300 Nm.
Yes, both series are available in ATEX versions.
DIN EN 15714-2 and ISO 5211.
Yes, available as standard with the VS series.
